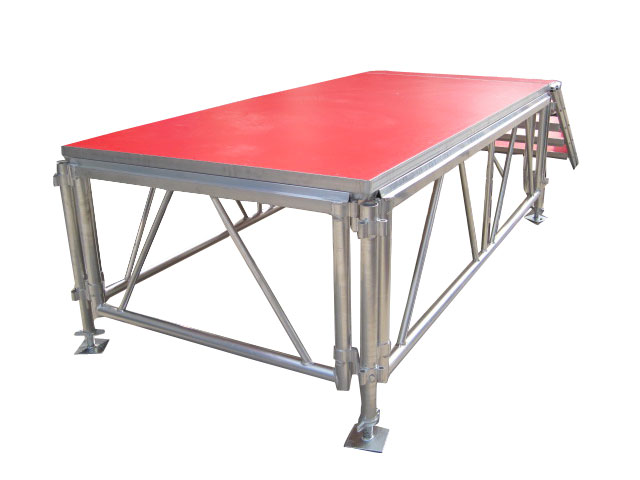

Aluminum assembly stage:
1. Material: Aluminum alloy 6061 T6
2. Size: 2.44x 1.22 m (8ft by 4ft)
3. Height Range:
30-35-40cm (0.3-0.35-0.4m) , or 12in-14in-16in
35-45-50cm (0.35-0.45-0.5m) , 14in-18in-20in
40-50-60cm (0.4-0.5-0.6m) , or 16in-20in-32in
60-80-100cm (0.6-0.8-1.0m) , or 24in-32in-40in (2ft-2.6ft-3.3ft)
80-100-120cm (0.8-1.0-1.2m), or 32in-40in -47in ( 2.6ft-3.3ft -4ft)
90-120-150cm (0.9-1.2-1.5m), or 3ft-4ft-5ft
120-150-180cm ( 1.2-1.5-1.8m), or 4ft-5ft -6ft
4. Main tube: 50mm OD, thickness 3mm. (2in OD, Wall thickness 0.12in)
5. Brace tube: 25mm OD, thickness 2mm. (1in OD, Wall thickness 0.08in)
6. Loading capacity: 550kg/m2 for plywood deck
7. Deck: 18mm thickness (0.7in thickness plywood)
8. Deck color: can be anti slip dot brown, black or red plywood, or carpeted plywood
9. Shipment date: around 10 days after receiving deposit |
